VEHICLE ACCESS CONTROL SYSTEMS

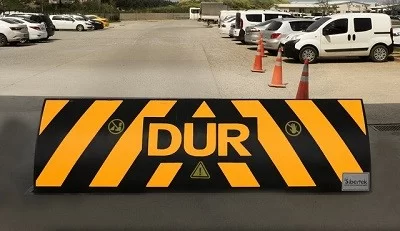

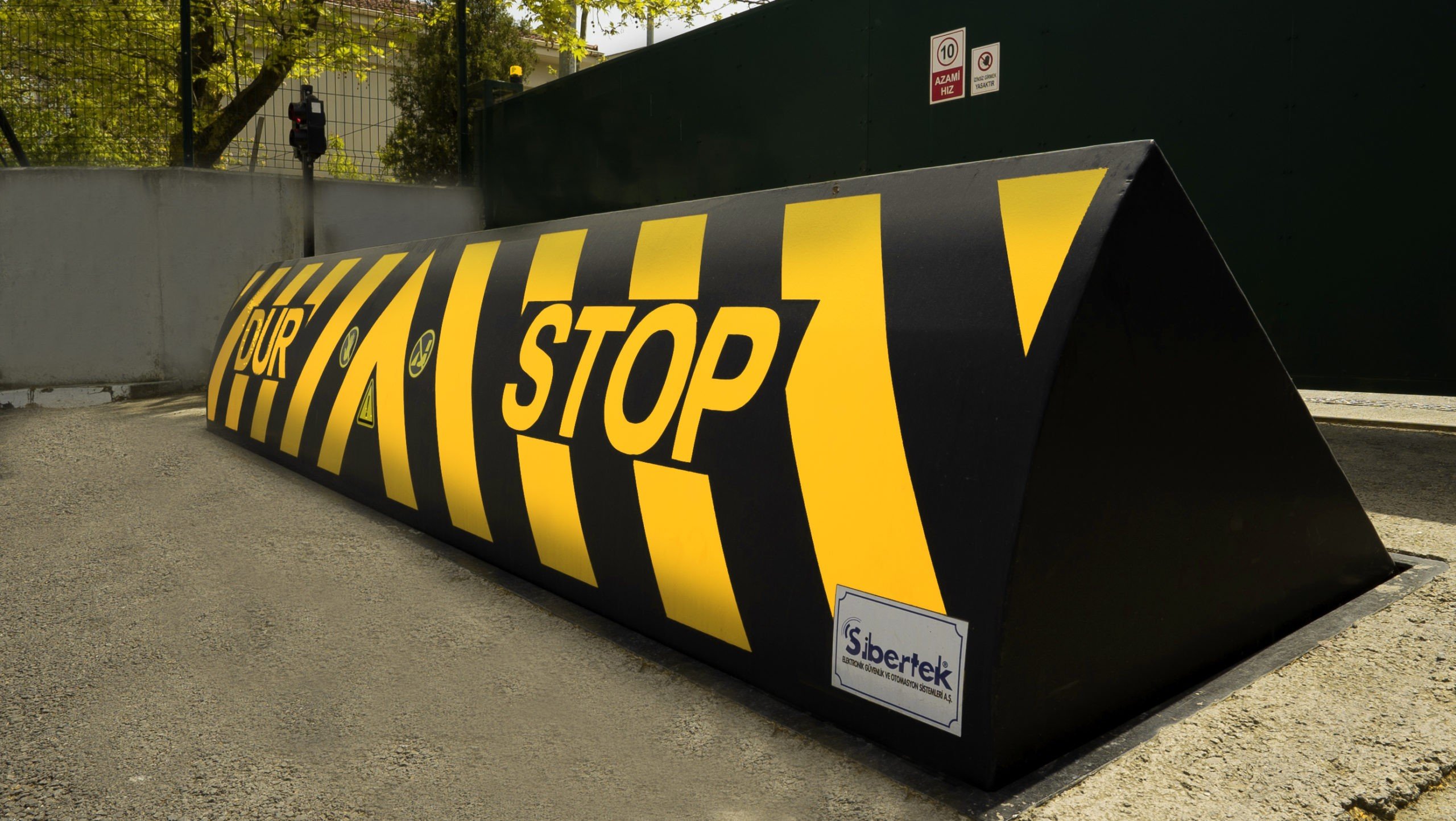

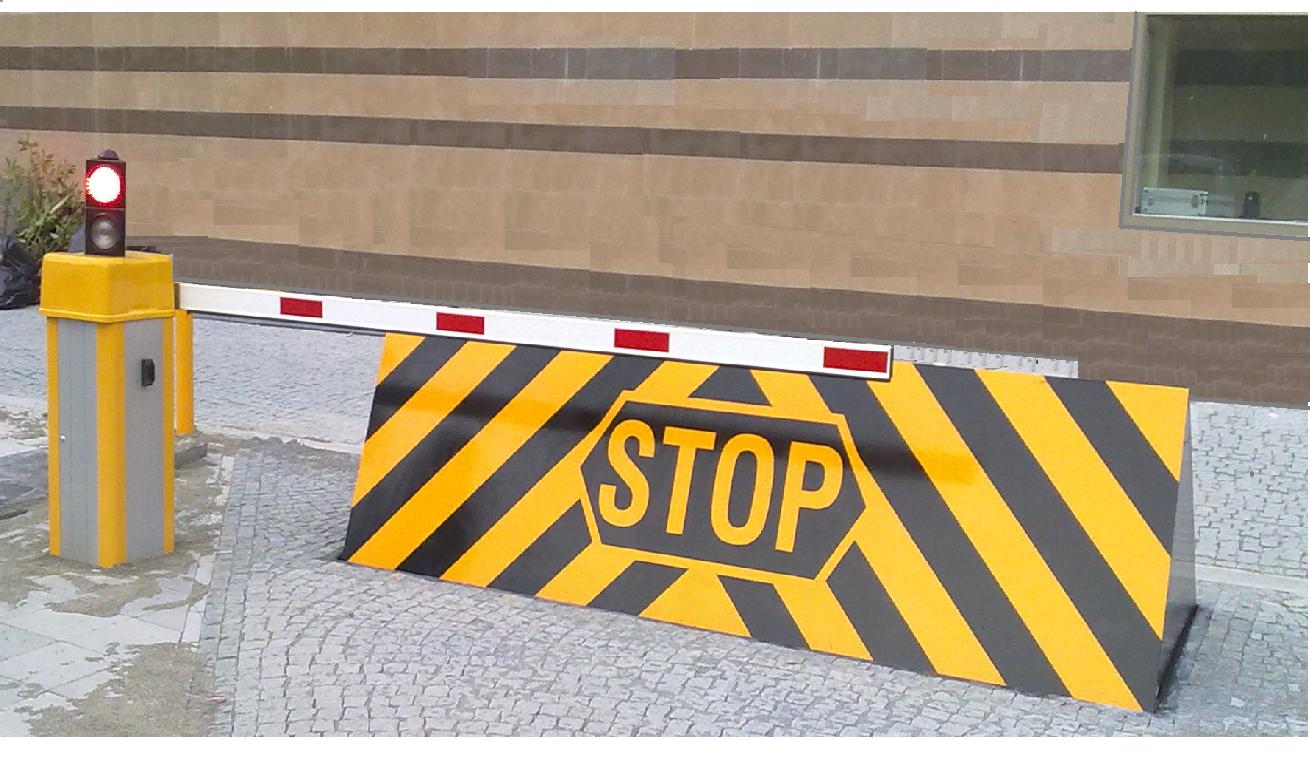

ROAD BLOCKER
TECHNICAL FEATURES
AREAS OF USE
TECHNICAL FEATURES
| Unit operating voltage | 380V AC, 3-Faz, 50/60 Hz |
| Length | 3111 mm – 4111 mm – 5111 mm – 6111 mm ±20 mm |
| Above-ground height | 780 mm ± 10 mm |
| The part buried in the ground | 1050mm ±10 mm |
| Extent | 1350mm ± 10 mm |
| Color | Yellow painted black (RAL 1028 , 9005) |
| Collision unit | Steel hair and NPU NPI steel bar construction |
| Wall thickness | 10 mm |
| Surface coating | Electrostatic paint |
| Corrosion protection | Sandblasting, epoxy primer, electrostatic paint |
| On/off time | 4-6 seconds |
| Emergency departure feature | 2 – 3 seconds (optional) |
| On/off capacity | 1000 /day |
| Engine power | 4kw – 5kw , 380V AC, 3-Faz |
| Operating temperature December | -25 / 60 °C |
| Working system | Hydraulic system |
| Hydraulic piston | 2 pieces |
| Hydraulic power unit | Industrial hydraulic pump, oil level and temperature indicator, manual hand pump |
| Automation routing | 220V bidirectional solenoid valve |
| Hydraulic pressure | 40-80 Bar |
| Hydraulic tank | 30-50 liters |
| Hydraulic hose | R2 3/8 330 Bar hose |
| Hydraulic oil | 46 No. hydraulic oil |
| Hydraulic system heating/cooling | Oil heater/cooler (optional) |
| Control Cabinet | Cabinet Dimensions: 900 x 900 x 700 mm (height, width, depth) |
| Control system | Remote control control,push button control (optional), access systems (optional) |
| Control panel | Compatible with PLC-based control, microprocessor control card, access systems devices (access card, license plate recognition system, fingerprint reader, etc.) |
| Manual operation | Manual hand pump |
| Warning equipment | Warning light (optional), traffic light (optional), audible warning (optional) |
| Safety system | Loop detector, photocell (optional) |
| Drain pump | Optional |
| Infrastructure | C35 dose reinforced concrete |
| Power failure operation | Battery (optional) |
AREAS OF USE
- Embassies
- Factories

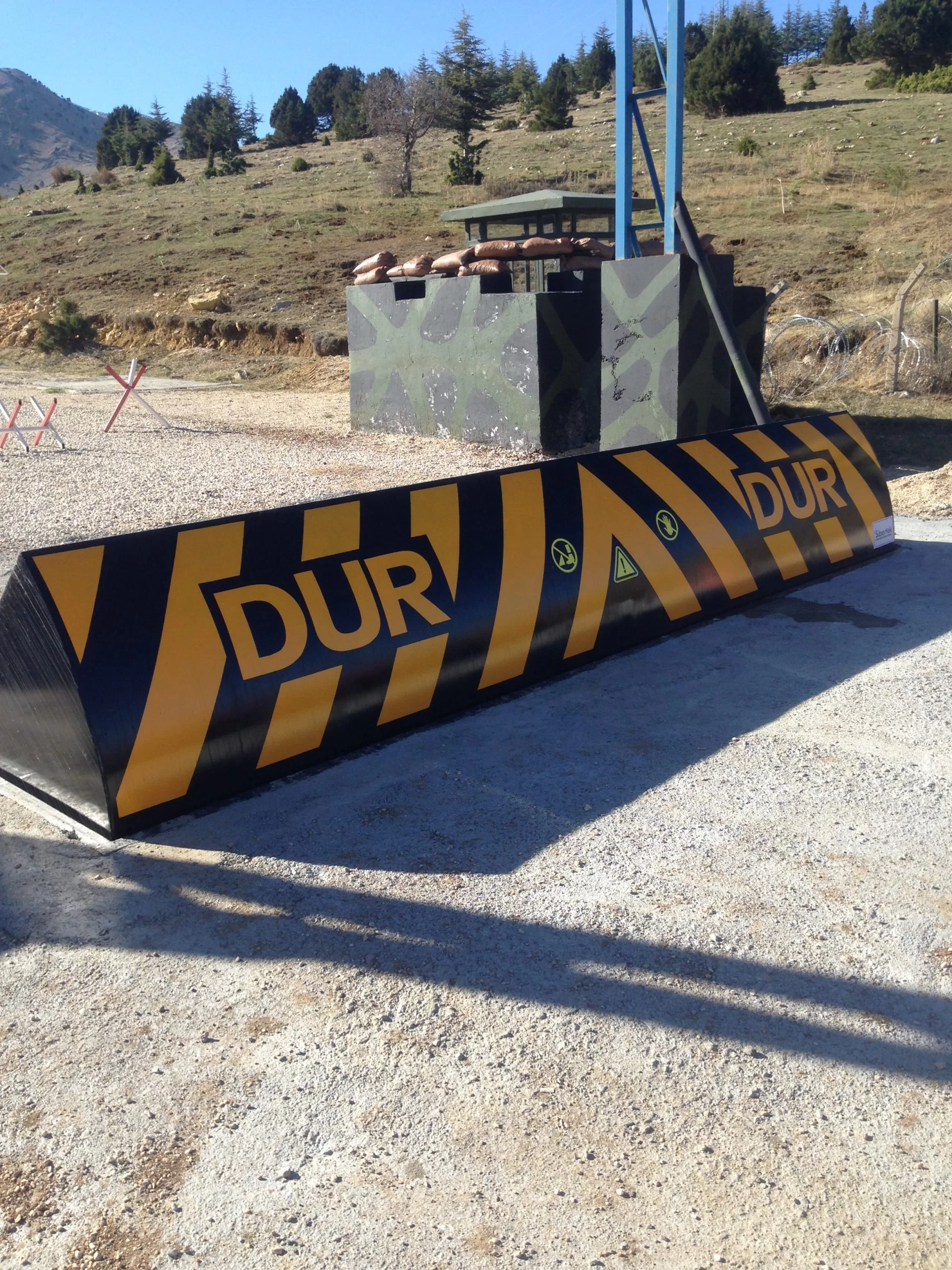

- Military Areas
- Consulates
- Industrial Facilities
- Hotels
- Airports
- Ports
- Public buildings ( Municipality, Governorship, District Governorship, Ministry, Assembly v.b.)
- Security buildings and police stations
- Organized Industrial zones
- Business and Shopping centers
